Email

Connect an email agent, let Bluejay’s test mail into its inbox, and grade whether your agent’s replies pass authentication and arrive.

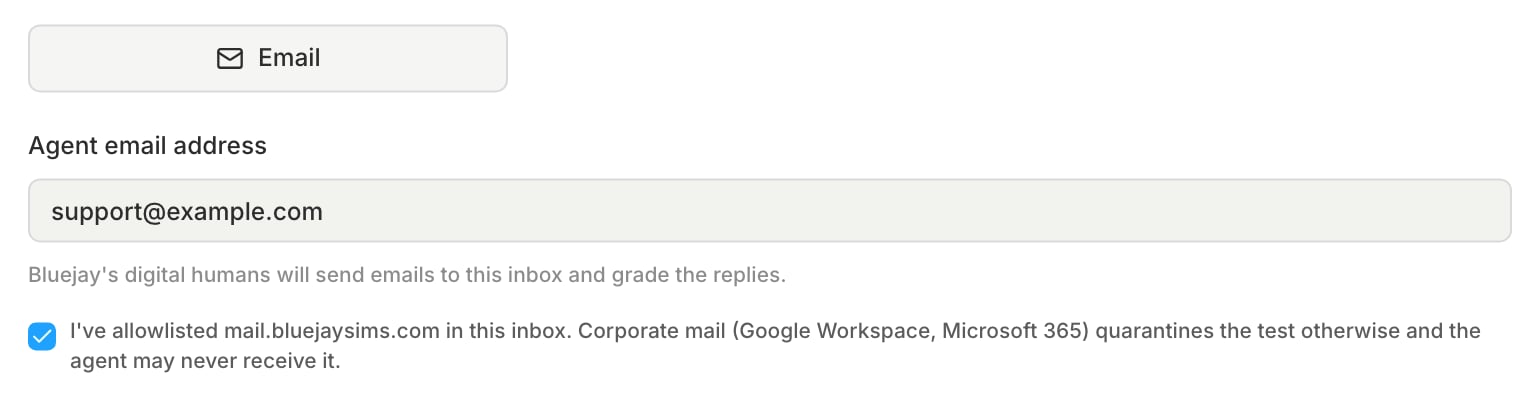

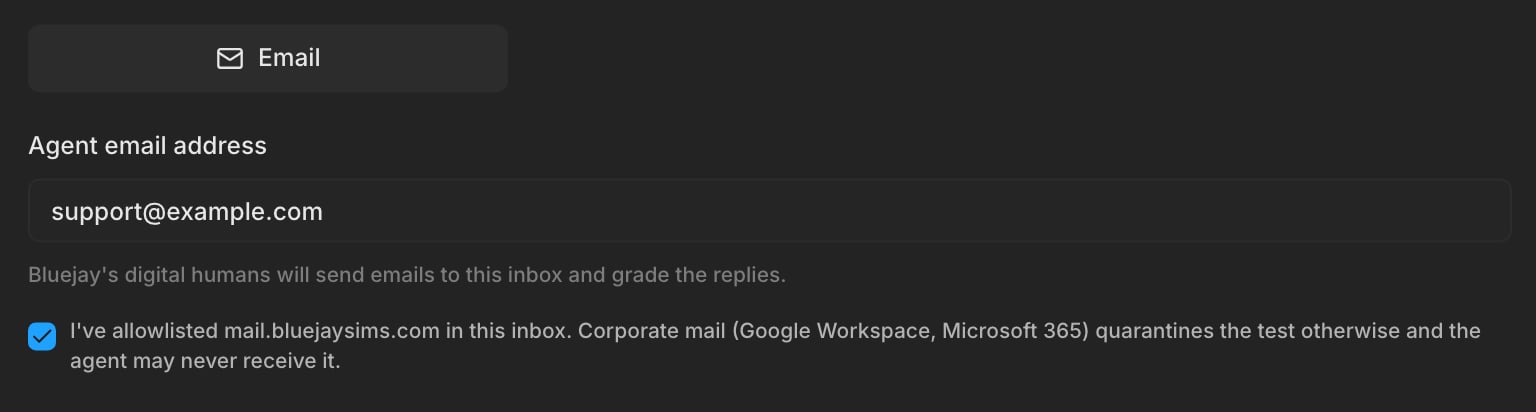

An agent email address filled in and the allowlist box checked

Connect

Website
API

Create the agent

Create an agent with the Email mode. Choose Inbound if customers write to your agent first, or Outbound if your agent writes first. Set up the allowlist for mail.bluejaysims.com first, as in Allow Bluejay’s mail, or the agent may never receive the test.If your agent answers from addresses other than its inbox, add them later under Reply-from addresses in the agent’s connection settings. Bluejay ignores a reply from any other address.

Run a simulation

Add the agent to a simulation and run it. For an Outbound agent, send the first email from your own system, as in How a conversation runs.

curl -X POST https://api.getbluejay.ai/v1/add-agent \
  -H "X-API-Key: $BLUEJAY_API_KEY" \
  -H "Content-Type: application/json" \
  -d '{
    "name": "Support Inbox",
    "type": "INBOUND",
    "connection_type": "EMAIL",
    "email_address": "[email protected]",
    "email_reply_addresses": ["[email protected]"]
  }'

Bluejay sets the agent’s mode to EMAIL itself. email_reply_addresses is optional. Queue runs with /v1/queue-email-simulation-run and the simulation_id.

Allow Bluejay’s mail

Corporate mail services such as Google Workspace and Microsoft 365 quarantine mail from unknown senders. If the agent’s inbox does not allowlist mail.bluejaysims.com, the agent never receives the test and every check fails.

Google Workspace

In the Admin console, open Apps > Google Workspace > Gmail > Spam, phishing, and malware.
Under Email allowlist, add a rule that bypasses spam for mail.bluejaysims.com, and save.

Microsoft 365

In Microsoft 365 Defender, open Policies & rules > Threat policies > Anti-spam.
Add mail.bluejaysims.com to the allowed domains, or add a mail flow rule that bypasses spam filtering for that domain, and save.

If a test email does not arrive, look in the admin quarantine first.

How a conversation runs

Every Digital Human has its own address on mail.bluejaysims.com, which stays the same across runs, and your agent replies to that address. The agent type sets who writes first:

Inbound: the Digital Human writes the first email to the agent email address.
Outbound: your agent writes first. Each Digital Human waits for an email at its own address, then replies. Bluejay does not call an outbound trigger webhook for an email agent, even if one is set, so send the first email from your own system. Each Digital Human’s address is on its Connection tab.

After that, the two sides take turns in one email thread. Bluejay reads only the new text of each reply and drops the quoted history below it. To count, a reply must come from the agent email address or one of the reply-from addresses, and it must pass authentication. Bluejay accepts a reply that passes DMARC. If your domain publishes no DMARC policy, Bluejay accepts a reply that has a DKIM signature from the sender’s domain instead. Bluejay ignores any other mail. If a reply comes from an address on your own domain that the agent does not list, the conversation also shows , so you know which address to add. The conversation stays open, and a later reply from a listed address still counts.

How a conversation ends

Bluejay does not read an end signal from your agent’s email. A conversation ends when one of these happens:

The Digital Human ends it.
The thread reaches the simulation’s maximum number of turns, 100 messages from both sides by default.
No email arrives for the inactivity timeout, 30 minutes by default. If the simulation sets its own inactivity timeout, Bluejay uses that value, between 5 and 30 minutes.
In an uptime check, the agent sends its first reply.

Metrics

Bluejay grades the mail itself with built-in metrics, such as SPF Pass Rate and DKIM Pass Rate on your agent’s reply. Three of them need a note:

Spam Score: lower is better.
Delivered Rate: checks the Digital Human’s email, not your agent’s reply. It passes when the email reached your agent’s inbox without a hard bounce or a spam complaint.
DMARC Pass Rate: a domain with no DMARC policy fails this metric, even though Bluejay still accepts its reply.

For an Inbound agent, Bluejay also records the time from the Digital Human’s first email to your agent’s first reply as the agent’s latency.

Monitor

To check an email agent on a schedule, use Uptime Monitoring. In the app, an uptime monitor or a scheduled run for an email agent runs at most every 30 minutes. If the Digital Human’s email hard bounces or gets a spam complaint, Bluejay pauses the monitor so that it stops sending to an inbox that rejects its mail.

Limits

Email runs take longer than voice or SMS runs.
A Digital Human can be in only one open email conversation at a time, because Bluejay matches your agent’s replies to the Digital Human by its address. In a run, each Digital Human’s conversations take turns, and it runs once even if the simulation sets more runs per Digital Human.

Troubleshooting

What you see	What to do
`400`: `EMAIL connection_type requires email_address`	Set when is `EMAIL`.
`400`: `email_reply_addresses: '...' is not an email address`	Fix the entry in that is not an email address.
`400`: `Agent is not an email agent (mode EMAIL, email_address set)`	Queue only for a simulation whose agent is an email agent.
`409`:	A Digital Human in the run is already in an open email conversation. Wait for it to finish, then run again.
	Your agent replied from an address on your domain that the agent does not list. Add it to Reply-from addresses.
System Error with	An Outbound agent sent no email before the inactivity timeout. Send the first email from your system to the Digital Human’s address.
The transcript has only the Digital Human’s first email	No reply reached Bluejay. Look in the admin quarantine, and check that the agent replies from a listed address that passes authentication.
